These are photographs of an uncovered C-165 owned by Gar Williams. The restoration is in progress but is basically ready for cover. The pictures were taken on 11/18/2000.
Notice the amount of custom shaped and formed woodwork in the cabin area and on the fuselage.
Full Frame View
|
|
 |
Cabin Framing
|
|
|
|
|
Door framing and right hand side of cabin fuselage framing |
Door and front right hand window framing |
Gar and the project |
|
|
|
|
|
Right hand fuselage |
Left hand rear cabin window framing |
Left hand rear cabin sidewall framing. Notice the elevator pushrod. |
|
|
|
|
|
Left hand cabin sidewall and controls |
Elevator trim assembly |
Parking brake linkages beneath pilot's rudder pedals |
Cabin Spar Carrythroughs
 |
 |
 |
| Flap motor, mounted on aft side of rear wing spar carrythrough | Front wing spar carrythrough, left forward attachment point | Front wing spar carrythrough, left rear attachment point |
 |
 |
|

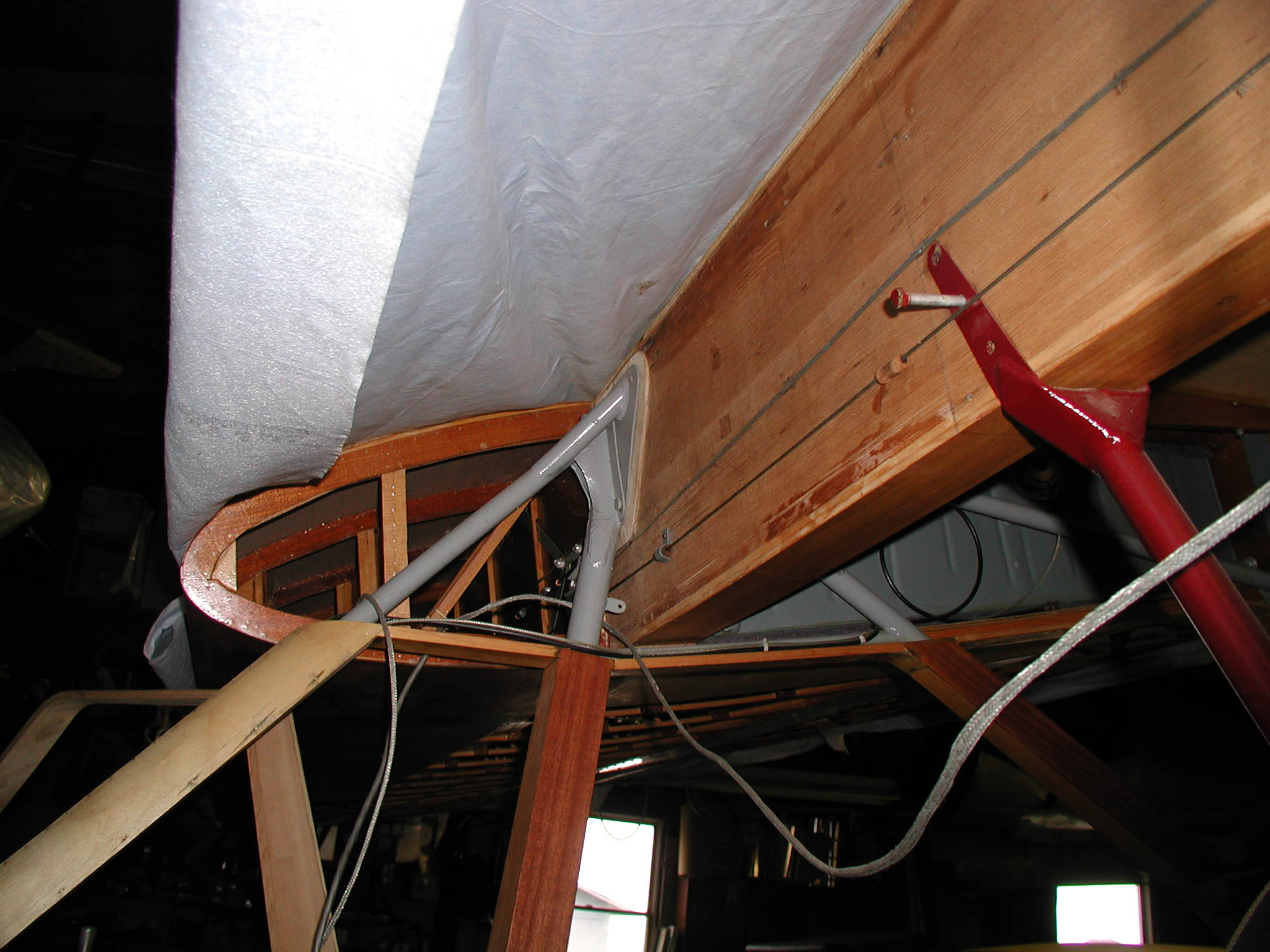

| Front wing spar carrythrough, right forward attachment point | Rear wing spar carrythrough, left hand forward attachment point |
Floor Area
 |
 |
 |
| Under-cabin floor tubing and framing, looking forward. Notice the tailwheel lock cable. | Under-cabin framing and tubing, from right side looking directly towards left side | Under-cabin framing and tubing, from right side looking towards left hand gear leg |
Right Wing
 |
 |
 |
| Right hand wing flap area | Right hand wing aileron area, looking inward. Notice the flat drag wires - they are roll-flattened wire, not sheared off steel. | RIght hand aileron pushrod linkage |
